Fitlock System
Fastening systems for panels and components
Fitlock is a press-fit fastening system for installing, positioning and removing panels and components.
The different fastening solutions meet specific application requirements, depending on the characteristics of the panel, the type of support and the available space.
What are
the main features of Fitlock systems?
- Positioning precisionThe press-fit fastening system allows the panel to be positioned and kept stable once installed.
- RemovabilityThe panel can be removed to access the space behind it during inspection, maintenance and technical servicing.
- AdjustabilitySome Fitlock configurations allow the gap to be compensated for and the fastening depth to be adjusted.
- Application versatilityThe range includes different fastening systems in terms of dimensions, support types, materials and installation methods.
- IntegrationThe fastening systems can be combined with other Fitlock System components according to the specific application requirements.
Fitlock System Application Sectors
The right configuration
starts with the project
Every application has specific fastening requirements.
The characteristics of the panel and support, the available space and the adjustment options determine the choice of the most suitable Fitlock configuration.
PANEL
What are the dimensions, weight and characteristics of the panel?SUPPORT
What are the thickness and material of the support?GAP
What distance must be maintained between the panel and the support?ADJUSTMENT
Is it necessary to compensate for any misalignments or adjust the position of the panel?INSTALLATION
Which fastening method is required: screws, adhesive, resin, resin casting or integration into the support?
One fastening principle for different configurations

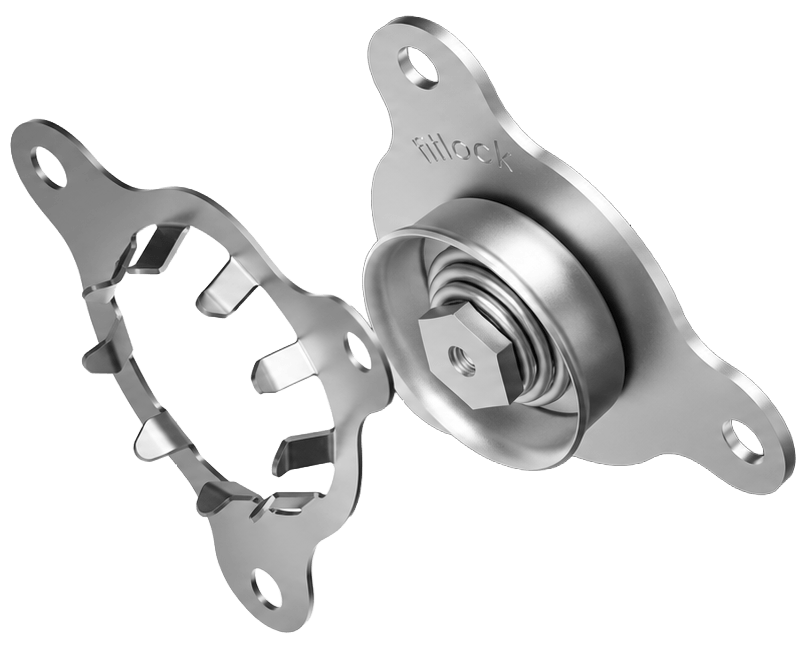

Fitlock System is based on the press-fit connection between a male and a female component.
The range includes fastening systems that differ in dimensions, materials, adjustment options and installation methods.
These include Fitlock, Fitlock Evo, Mini Fitlock, Mini Fitlock Evo, Mini Fitlock Base, Mini Fitlock Evo Lega, Fitlock Glue and AZ Fitlock.
The Complete Fitlock System Range
Fitlock System includes press-fit fastening systems, complementary components and integration solutions for fastening panels and components.
The range brings together products with different technical characteristics and functions, which can be used in various configurations according to installation requirements.
Fastening systems
Disclaimer:
Dimensions, materials and performance specifications must be verified in the technical datasheet of each product.
Always precise
Adjustable when needed
Fitlock configurations differ in dimensions, positioning options and adjustment systems. The characteristics of each model make it possible to identify the most suitable solution for the panel and support.
Fitlock
Press-fit fastening system for panels, allowing movement of up to 4 mm in all directions.
Fitlock Evo

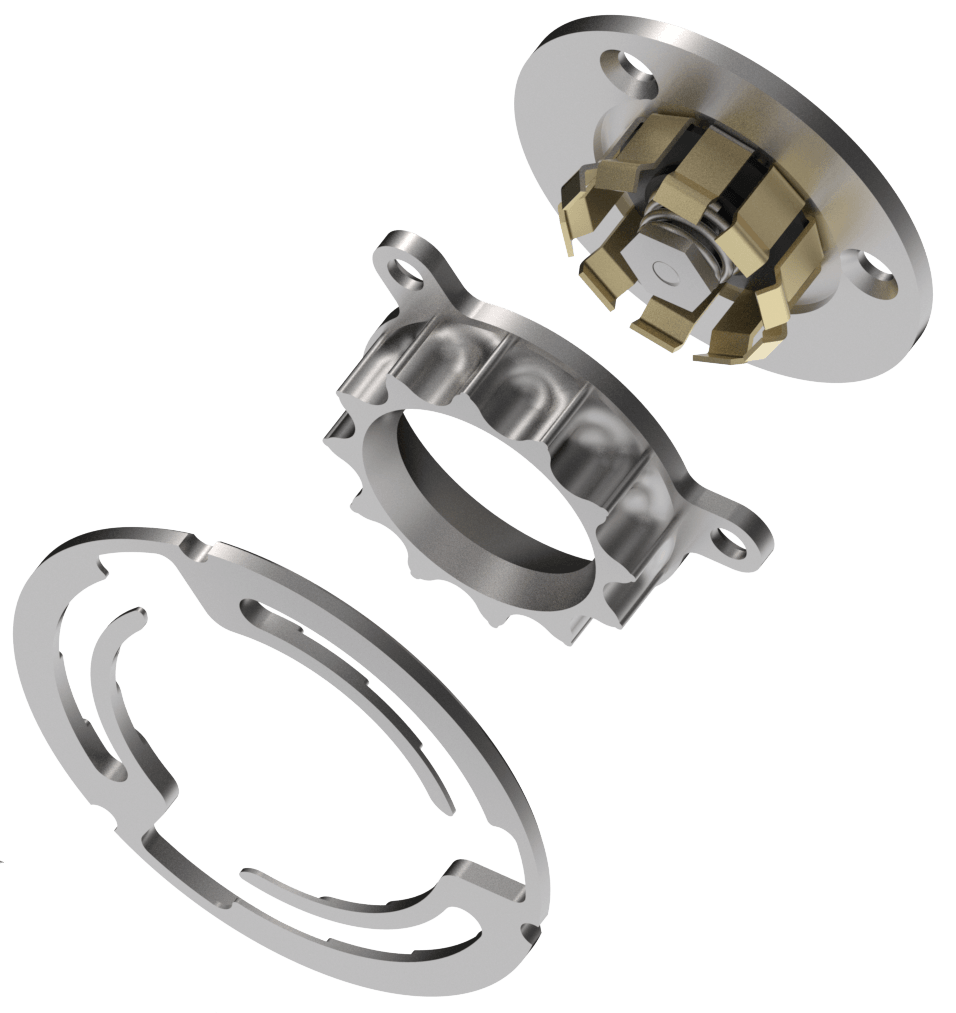

Press-fit fastening system equipped with a variable-thickness spacer for adjusting the fastening depth, allowing movement of up to 4 mm in all directions.
Mini Fitlock
Press-fit fastening system for small panels and supports with limited space, allowing movement of up to 3 mm in all directions.
Mini Fitlock Evo
Compact fastening system equipped with a variable-thickness spacer for adjusting the fastening depth.
Installation methods based on project requirements
The Fitlock range includes fastening systems with different installation methods, which can be selected according to the characteristics of the application.
Mechanical installation
Fastening using mechanical elements, according to the characteristics and technical specifications of the system used.
Installation with adhesives or resins
Fitlock Glue and AZ Fitlock offer, depending on their respective configurations, installation methods using adhesive, resin, resin casting or co-moulding.
Different supports and panels
The range includes fastening systems for panels and supports of different dimensions and thicknesses.
To verify dimensions and performance specifications, please refer to the technical datasheet of each model.
Fitlock as an integral part of Fitlock System
Fitlock is the range of press-fit fastening systems that forms part of Fitlock System, together with solutions for grid structures and furniture.
Fitlock fastening systems can be combined with other components in the range for applications involving structures, cladding, furniture elements and technical components.
FAQ
Fitlock is a press-fit fastening system for mounting panels and panel assemblies. It uses male and female components that allow the panel to be fastened, positioned and removed.
The system works through a press-fit connection between a male and a female component. The configuration varies depending on the panel, the support and the installation requirements.
Yes. Fitlock systems are designed to allow panels to be removed, facilitating inspection, maintenance and reinstallation.
It depends on the model. Fitlock and Fitlock Evo allow movement of up to 4 mm in all directions, while Mini Fitlock and Mini Fitlock Evo allow up to 3 mm.
The choice depends on the size and weight of the panel, the thickness of the support, the available space, adjustment requirements, material and installation method.
Yes. Fitlock systems are also used for wall and ceiling cladding.
Yes. The marine sector is one of the application areas of the Fitlock system.
Yes. The Mini Fitlock range is designed for small panels and supports with reduced thickness.
Yes. The range includes alloy solutions, such as Mini Fitlock Evo Lega.
Yes. Some versions, such as Fitlock Glue and AZ Fitlock, are designed for installation methods involving adhesives, resins, resin casting or co-moulding.
